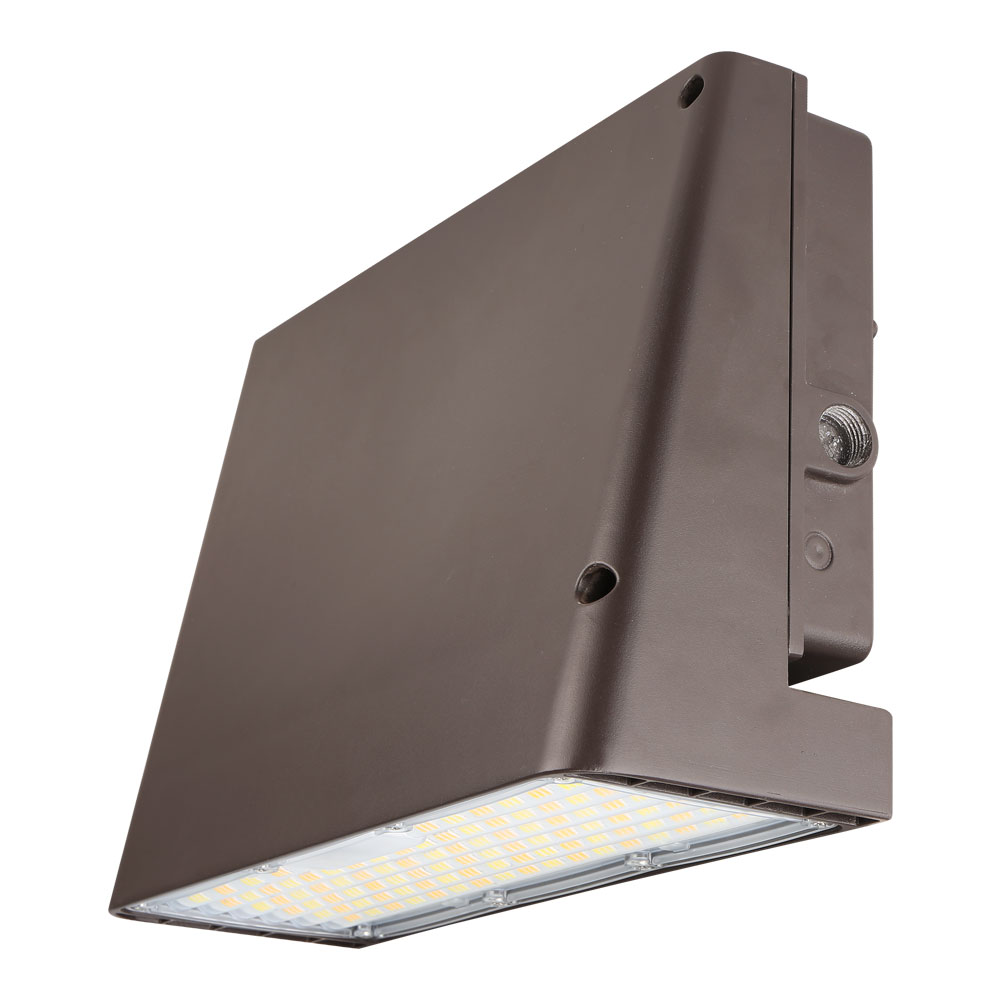

Wall Pack Light – MWP15

Short Description:

The brand-new WP15 series of LED Wall Pack, available only in one size and the power from 26W to 135W, can replace up to 400W MH. Uniform light distribution and excellent LED lumen maintenance rate, high energy efficiency, low cost, while taking into account the stylish design, ensure that the fixture has a long service life.

WP15 also has on-site dimmable output and CCT settings, allowing the contractor to set the lumen value and CCT of the fixture at the installation site to a level that is perfectly suitable for the work site. Emergency egress battery and light control are optional, which is an ideal choice to meet any daily wall-mounted lighting applications.

Send email to us

Product Detail

Download

Product Tags

Specification
Series No.	MWP15
Voltage	120-277V/347V-380V VAC
Dimmable	1-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	26W, 38W, 65W, 100W, 135W
Light Output	4000 lm, 6000 lm, 10000 lm, 15500 lm, 20000 lm
UL listing	UL-US-2158941-2
Operating Temperature	-40°C to 40°C （-40°F to 104°F）
Lifespan	50,000-hour
Warranty	5 year
Application	Pathway, Building entryways, Perimeter lighting
Mounting	Junction box (No need to open driver box)
Accessory	Photocell - Button (Optional), Emergency Battery Backup Power and CCT controller (Optional)
Dimensions
100W	13.1in.x9.6in.x5.0in
26W/38W/65W/135W	13.1in.x9.6in.x3.8in
