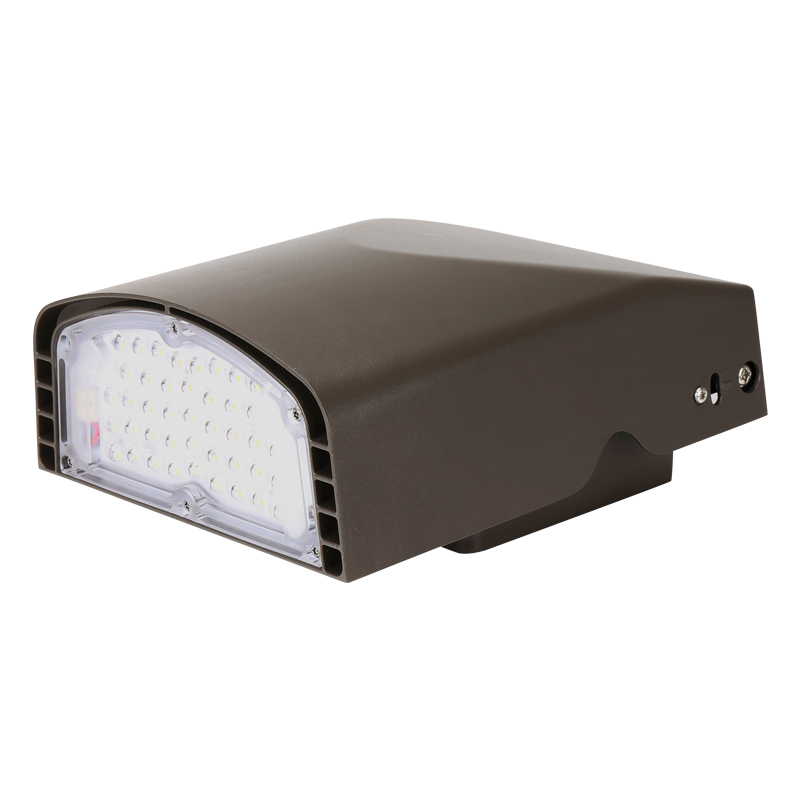

Wall Pack Light – MWP10
Short Description:
The die-cast door frame is fully gasketed with a one-piece solid silicone gasket to keep out moisture and dust, providing an IP65 rating for the luminaire. Well-crafted reflector optics allow the light engine to be recessed within the luminaire, providing visual comfort, superior distribution, uniformity, and spacing in wall-mount applications. 0 to +90° tilt adjustments. The classic architectural shape of the WP10 series was designed for applications such as hospitals, schools, malls, restaurants, and commercial buildings.
Features & Benefits:
- Rugged die-cast housing and UV stabilized polycarbonate optic lens.
- Built in Dusk-To-Dawn Photocell.
- Four adjustable Wattage levels available for each models.
- Color Temperature adjustable: 3000K,4000K, 5000K.
- Universal 120-277V input voltage.
- 0-10V dimming driver standard for 10% to 100% dimming.
- Operating temperature is -40°C to 40°C.
| Specification | |
| Series No. |
MWP10 |
| Voltage |
120-277 VAC |
| Dimmable |
1-10V dimming |
| Light Source Type |
LED chips |
| Color Temperature |
3000K/4000K/5000K |
| Power |
27W, 40W, 67W, 80W |
| Light Output |
3600 lm, 5300 lm, 9600 lm, 11200 lm |
| UL listing |
20181227-E359489 |
| IP Rating |
IP65 |
| Operating Temperature |
-40°C to 40°C ( -40°F to 104°F ) |
| Lifespan |
50,000 hours |
| Warranty |
5 year |
| Application |
Security and pathway, Perimeter lighting, Building entryways Walkways |
| Mounting |
Junction box or Wall mount |
| Accessory |
Photocell - Button ( Optional ) |
| Dimensions | |
| Small size 27W&40W |
7.29x9.13x4.2in |
| Medium size 67W&80W |
10.06x11.02x5.09in |
-
