Wall Pack Light – MWP02

Wall Pack Light – MWP02

Short Description:

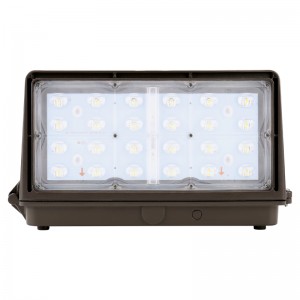

The full cutoff LED wall pack provides a durable and efficient exterior light source for any application requiring maximum performance and minimum maintenance. The rugged, die-cast aluminum housing makes the Wall Pack virtually impenetrable to contaminants. Our building mounted outdoor lighting products are perfect for pedestrian and parking areas, walkways, garages, stairways, perimeter and other outdoor spaces requiring additional safety and security.



Features & Benefits:
  • Scalable Lumen Packages from 3,900 to 18,000 Lumens.
  •  Standard 4000K and 5000K (70 CRI) light engine configurations.
  • Universal 120-277V or 347-480VAC input voltage with high power factor (≥0.9) and -40°C to 45°C operation.
  • Sealed die-casting profile with 3G vibration rating for outdoor durability.
  • Estimated 50,000-hour LED lifespan and five-year warranty.产品认证图标_WP02_WP02


Product Detail

Download

Product Tags

Specification
Series No.
MWP02
Voltage
120-277 VAC or 347-480 VAC
Light Source Type
LED chips
Color Temperature
4000K/5000K
Power
27W, 45W, 70W, 90W, 135W
Light Output
3950 lm, 6600 lm, 9900 lm, 12200 lm, 18000 lm
UL listing
Wet location
Operating Temperature
-40°C to 45°C ( -40°F to 113°F )
Lifespan
50,000 hours
Warranty
5 year
Application
Pathway, Building entryways, Perimeter lighting
Mounting
Junction box or Wall mount
Accessory
Photocell - Button (Optional), Emergency Battery Backup
Dimensions
27W&45W&70W
14.21x9.25x7.99in
90W&135W
18.098x9.02x9.75in
