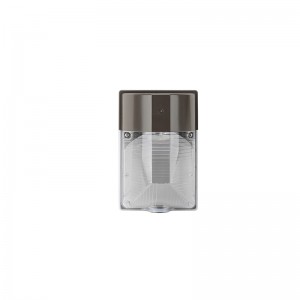

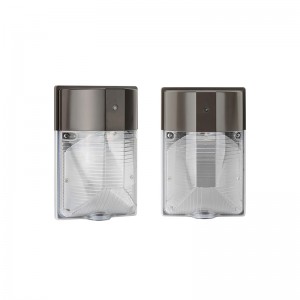

Wall Pack Light – MWM01

Wall Pack Light – MWM01

Short Description:

Cast in a traditional design, the LED wall mount luminaire offers the shape you’ve grown accustomed to coupled with the high-powered and energy efficient LEDs you want. Photocell for dusk to dawn operation. It is ideal
for safety , security and any facilities.







Features & Benefits:

  • Scalable lumen packages from 1,600 to 2,700 Lumens.
  • Standard 3000K/4000K/5000K (70 CRI) light engine configurations.
  • Universal 120 – 277 VAC input voltage with high power factor and low THD.
  • Optional clear or frosted lens for different lighting needs.
  • Estimated 100,000 – hour LED lifespan and 5 – year warranty.产品认证图标_WM01






Product Detail

Download

Product Tags

Specification
Series No.
MWM01
Voltage
120-277 VAC
Light Source Type
LED chips
Color Temperature
3000K/4000K/5000K
Power
15W, 17W, 25W
Light Output
1820lm, 2000lm, 2700lm
UL listing
Wet location
Operating Temperature
-40°C to 40°C ( -40°F to 104°F )
Lifespan
50,000 hours
Warranty
5 year
Application
Safety , security and any facilities
Mounting
Junction box or Wall mount
Dimensions
15W/17W/25W 8.376x5.47x3.46in

  • LED Wall Pack Light Specification Sheet
