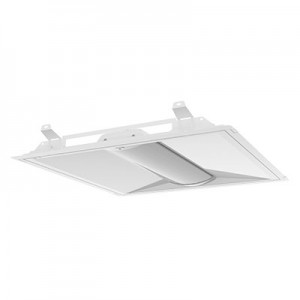

Retrofit Troffer Light-MTL01
Short Description:
Illuminate Your Space with Style! Discover the Mester LED Troffer Light – designed for unparalleled uniformity and modern aesthetics. Transform your commercial and
institutional environments with soft, comfortable lighting that enhances productivity and well-being. Perfect for offices, classrooms, retail, and healthcare facilities,
ourTroffer Lights offer energy efficiency without compromising on design.
Features&benifits:
- Quickly retrofit in 2×2/2×4 setups; die - formed steel housing, reflectors & end caps ensure durability.
- 115° beam, 5 CCTs (3000K - 6500K), 2600 - 6600 lumens, 2 lighting levels, frosted lens cuts glare.
- 120 - 277 VAC input, adjustable wattage, 0 - 10V dimming (10% - 100%), PF >0.9, THD ≤20%, -20°C to 40°C operation.
- Optional emergency battery and plug - in PIR sensor for easy, no - mod installation.
- UL - listed, 50,000 - hour lifespan, 5 - year warranty, up to 150 lm/W for cost - effective upgrades.
| Specification | |
| Series No. |
MTL01 |
| Voltage |
120-277VAC |
| Dimmable |
0-10V dimming |
| Light Source Type |
LED chips |
| Color Temperature |
3500K/4000K/5000K |
| Power |
40W,50W |
| Light Output |
132lm/W,158lm/W |
| Beam Angle | 120° |
| Operating Temperature |
-20°C to 45°C (-4˚F - + 113˚F) |
| Lifespan |
50,000 hours |
| Warranty |
5 year |
| Application |
Office, Commercial lighting |
| Mounting |
Surface Mount (default), Recessed Mount (option), Suspended mount (option) |
| Accessories |
Plug-in PIR Sensor |
| Dimensions | |
| 2x2 | 23.7 in x 23.7 in x 1.77in |
| 2x4 | 23.7 in x 47.8 in x 1.77in |
-
Retrofit Troffer Light Specification Sheet
-
