Post Top Light – MPL04
Short Description:

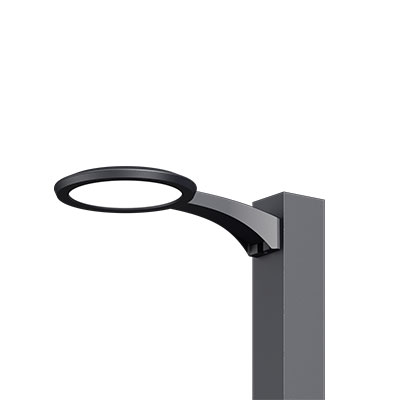

The post top provides a unique, scalable lighting solution targeted for 8’ to 20’ mounting heights. Its design brings proportion to parking lots, drive lanes, entrances, building perimeters and pathways. The excellent optical design that deliver the smooth light with a very good uniformity. The structure is clean and more popular, promotes harmony between the outdoor lighting and architecture.
Features&Benifits:
- Rugged die-cast aluminum housing and elegant exterior design.
- Optics Field-adjustable for type ll, type lV, type V distributions.
- Offer 3 selectable CCT (30K/40K/50K).
- Four adjustable wattage levels available for each model.
- Integrated photocell control optional.
- 0-10V dimming driver standard for 10% to 100% dimming.
- Operating temperature is -40°C to 45°C.
| Specification | |
| Series No. |
MPL04 |
| Voltage |
120-277 VAC or 277-480 VAC |
| Dimmable |
0-10V dimming |
| Light Source Type |
LED chips |
| Color Temperature |
3000K/4000K/5000K |
| Power |
45W, 90W, 130W |
| Light Output |
172lm/W, 170lm/W,157lm/W |
| Operating Temperature |
-40 ̊ C to 40 ̊ C ( -40°F to 104°F ) |
| Lifespan |
50,000 hours |
| Warranty |
5 year |
| Application |
Building perimeters, Pathway, Green area |
| Mounting |
Pole Mount, Conduit Pendant, Arm Mount, Wall Mount,Square Pole Mount |
| Accessory |
Plug-and-Play PIR Sensor , Plug-and-Play Microwave Sensor |
| Dimensions | |
| 45W&110W |
∅18in x 24.9in |
-
LED Post Top Light Specification Sheet
-
