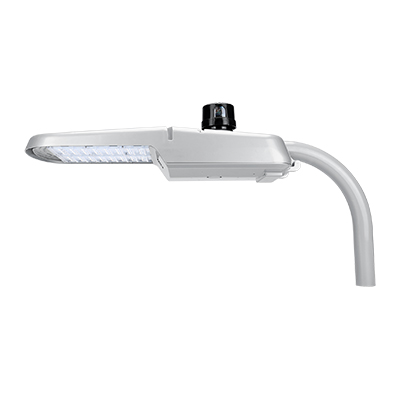

Roadway Light – MRL01

Roadway Light – MRL01

Short Description:

The Mester LED roadway luminaire provides uncompromising optical performance and outstanding versatility for a wide variety of area and roadway
applications.
Our customer focused features include single latch tool-less entry, industry leading surge protection options and superior lumen maintenance and performance, all in an economical design. It is ideal for illuminating walkways, parking lots and roadways.



Features & Benefits:
  • Scalable lumen packages from 6,100 to 20,000 Lumens, replacing up to 400W Metal Halide.
  • Standard CCT options (3000K, 3500K, 4000K, 5000K) with a minimum CRI of 70.
  • Universal voltage operation (120 – 277V, 347V, 480V) with 1 – 10V dimming and 10kV/10kA surge protection.
  • Heavy-duty cast aluminum housing with 3G vibration rating and moisture protection.
  • Estimated 100,000 – hour LED lifespan and a five – year warranty.
产品认证图标_RL01 RL02 FD07


Product Detail

Download

Product Tags

Specification
Series No.
MRL01
Voltage
120-277 or 347-480 VAC
Dimmable
1-10V dimming
Light Source Type
LED chips
Color Temperature
3000K/3500K/4000K/5000K
Power
45W, 70W, 100W, 150W
Light Output
6350 lm, 9400 lm, 13800 lm, 20000 lm
UL listing
20181114-E359489
Operating Temperature
-40°C to 45°C (-40°F to 113°F)
Lifespan
100,000-hour
Warranty
5 year
Application
Walkways, Parking lots, Roadways
Mounting
Pole mount
Accessory
PIR Motion Sensor (Optional), Photocell (Optional)
Dimensions
45W&70W&100W&150W
23.84x4.52x10.43in

  • LED Roadway Light Specification Sheet
  • LED Roadway Light Instruction Guide
  • LED Roadway Light IES Files
