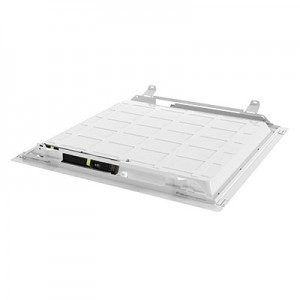

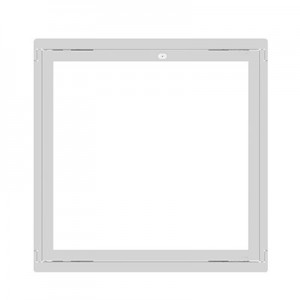

LED RETROFIT PANEL LIGHT-MRFP01

LED RETROFIT PANEL LIGHT-MRFP01

Short Description:

Illuminate Your Space with Style! Discover the Mester LED Troffer Light – designed for unparalleled uniformity and modern aesthetics. Transform your commercial and
institutional environments with soft, comfortable lighting that enhances productivity and well-being. Perfect for offices, classrooms, retail, and healthcare facilities,
ourTroffer Lights offer energy efficiency without compromising on design.





Features&Benifits:

  • The LED panel light can be quickly retrofitted in 1×4, 2×2, 2×4 setups. Its die – formed steel and aluminum frame ensures durability, and low – profile design aids installation.

  • It has a 115° beam angle, five CCT options, scalable lumens (2,600 – 6,600), two lighting levels, and a lens for even light.

  • With 120 – 277 VAC input, adjustable wattage, 0 – 10V dimming, good PF and THD, it works in -20°C to 40°C.

  • Optional sensor and emergency battery are available. The plug – in PIR sensor makes installation easy.

  • UL – listed, it has a 50,000 – hour lifespan, 5 – year warranty, high efficacy (up to 150 lm/W), and suits various indoor places.


    产品认证图标_RFP01


Product Detail

Download

Product Tags

1213mm x 603mm x15mm

Specification
Series No.
MRFP01
Voltage
120-277VAC
Dimmable
0-10V dimming
Light Source Type
LED chips
Color Temperature
3000K/3500K/4000K/5000K/6500K
Power
20W,25W,30W,35W,40W
Light Output
150lm/W
Operating Temperature
-20°C to 40°C (-4˚F - + 104˚F)
Lifespan
50,000 hours
Warranty
5 year
Application
Office, Classroom,Hotel
Accessories
Emergency Battery,Sensor
Dimensions
1x4 47.8inch x 11.9inch x 2.9inch
2x2 23.7inch x 23.7inch x 2.9inch
2x4 47.8inch x 23.7inch x 2.9inch

  • LED Retrofit Panel Light Specification Sheet
