LED Linear Fixture – MLF04

Short Description:

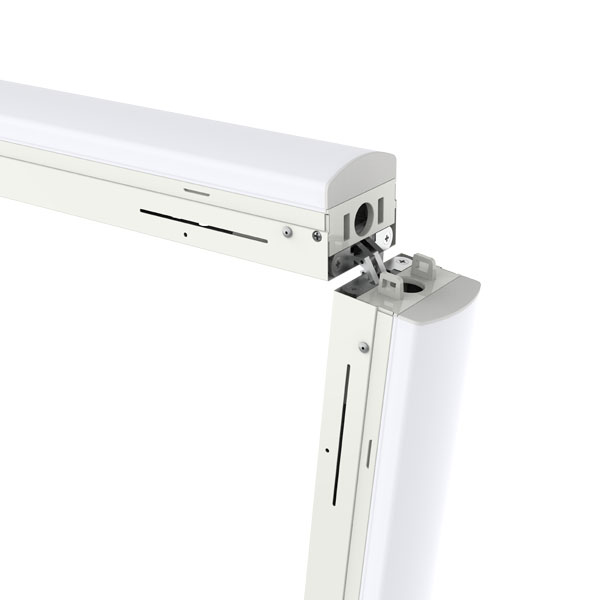

MESTER MLF03 series is one type of strip light that is lightweight and versatile. The meticulously designed optical system can effectively reduce glare and provide comfortable lighting effect. The installation is easy and convenient, and supports Continuous Row Mount. MLF03 includes a total of seven power level adjustment options ranging from 20 to 68W; CCT supports three adjustable color temperatures of 3500K, 4000K and 5000K. Both options are operated with simple switches, which will greatly reduce the customer’s SKU and be budget-friendly.

Send email to us

Product Detail

Download

Product Tags

Specification
Series No.	MLF04
Voltage	120-277 VAC
Dimmable	1-10V dimming
Light Source Type	LED chips
Color Temperature	3500K/4000K/5000K
Power	24W, 40W, 70W, 86W
Light Output	3408 lm, 5600 lm, 10010 lm, 12298 lm
UL listing	Wet location
Operating Temperature	-20°C to 40°C (-4˚F - + 104˚F)
Lifespan	50,000 hours
Warranty	5 year
Application	commercial, warehouses, parking lot, corridor, retail spaces
Mounting	● V-Hook (default) ● Surface (default) ● Aircraft cable (sold separately) ● T-bar brack (sold separately)
Accessory	Plug in PIR Sensor, Emergency Battery Backup
Dimensions
2FT	24in x 2.6in x 2.3in
4FT	47.9in x2.6in x2.3in
8FT	96in x 2.6in x 2.3in
