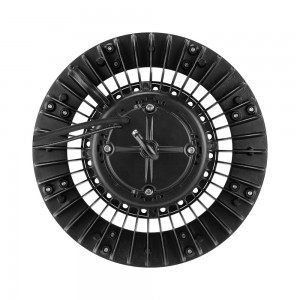

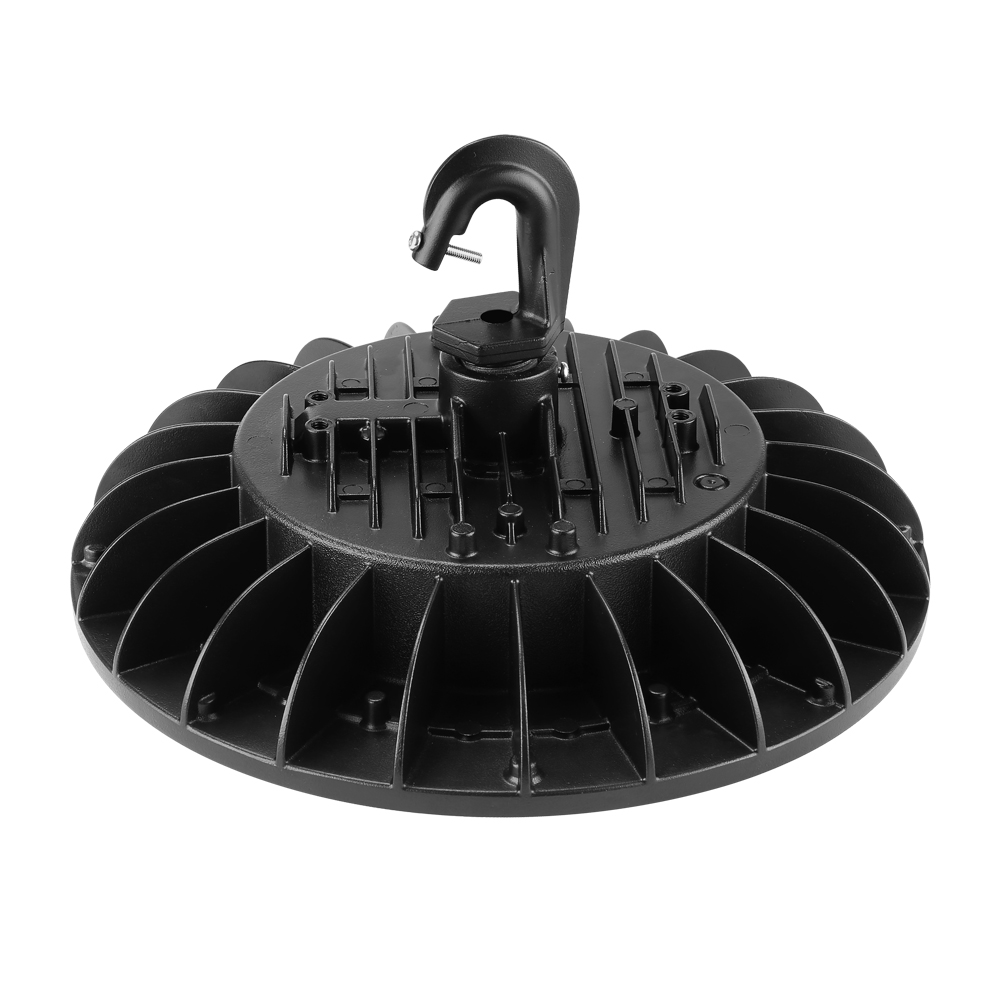

LED High Bay – MHB06
Short Description:
MHB06 is a black economical alternative to MHB02 with light efficiency up to 136 lm/ W. The MHB06 is suitable for using in low level of lighting spaces as an economic choice for customers. And more than 80 CRI will generate visual comfortable lighting.
Features & Benefits:
- Scalable Lumen Packages from 14,000 to 30,500 Lumens.
- Color - tunable CCT (4000K, 5000K) with on - site adjustment function.
- Universal 120 - 277VAC input voltage with 0 - 10V dimming and high power factor.
- Multiple mounting options like conduit pendant, hook, and surface mounting.
- Five - year limited warranty and UL cUL wet location listed.
| Specification | |
| Series No. |
MHB06 |
| Voltage |
120-277 VAC or 347-480 VAC |
| Dimmable |
1-10V dimming |
| Light Source Type |
LED chips |
| Color Temperature |
4000K/5000K |
| Power |
67W, 97W, 140W, 180W, 215W |
| Light Output |
9100 lm, 12300 lm, 17500 lm, 25000 lm, 30000 lm |
| UL listing |
UL-US-2011537-2, UL-US-L359489-11-32909102-5, E359489 |
| Operating Temperature |
-40°C to 50°C ( -40°F to 122°F ) |
| Lifespan |
50,000 hours |
| Warranty |
5 year |
| Application |
Warehouses, Industrial, Retail |
| Mounting |
Conduit pendant, Hook or surface mounting |
| Accessory |
PIR Motion Sensor, Emergency Box, U-bracket |
| Dimensions | |
| 67W & 97W |
∅13.03x7.9in |
| 140W |
∅13.03x8.26in |
| 180W & 215W |
∅13.1x7.2in |
| 190W |
∅15.56x7.08in |
-
LED High Bay Light Specification Sheet -
LED High Bay Light Instruction Guide -
LED High Bay Light IES Files -
MHB06 - Product Video
-
