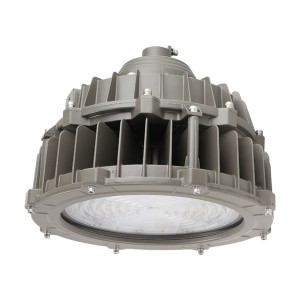

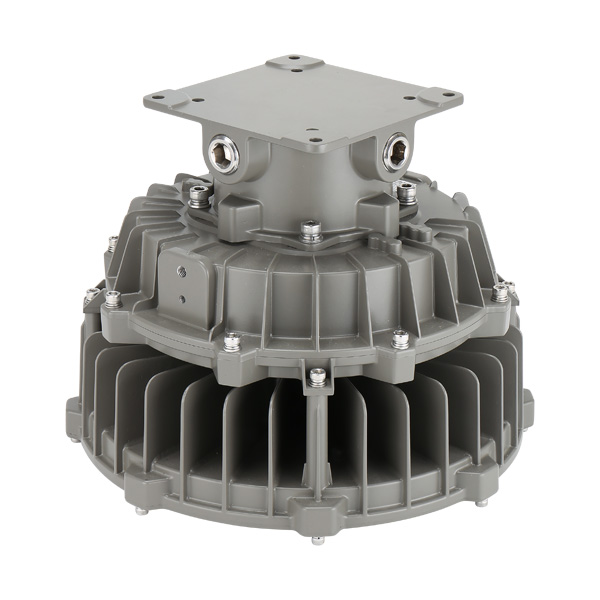

LED Hazardous Location Round Luminaires – MHR01

Short Description:

At 150 lumens per watt with 3 different beam patterns, the HR Series brings design, excellence, and durability to harsh and hazardous rated lighting.Various installation ways for different applications. Explosion proof, the HR is suitable where ammable gases, vapors and combustible dusts are present. Applications include oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location.

Send email to us

Product Detail

Download

Product Tags

Specification
Series No.	MHR01
Voltage	120-277 VAC or 347-480 VAC
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K/5700K
Power	60W, 70W, 80W, 90W, 100W, 120W, 140W, 160W, 180W, 200W
Light Output	10500lm, 11500lm, 12500lm, 1400lm, 15500lm, 20500lm, 23500lm, 26000lm, 29000lm, 31500lm
UL listing	UL-US-2416528-0
Operating Temperature	-40°C to 65°C ( -40°F to 149°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location

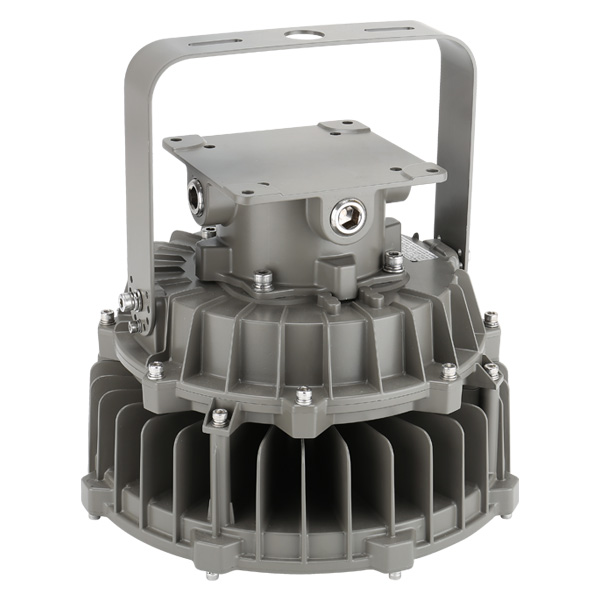

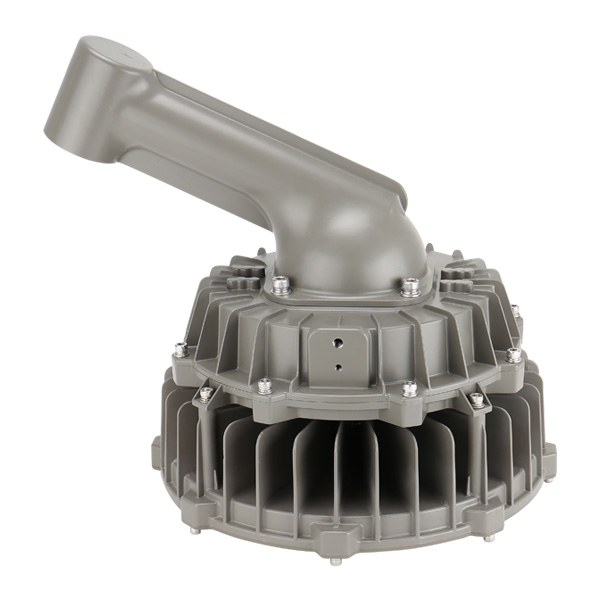

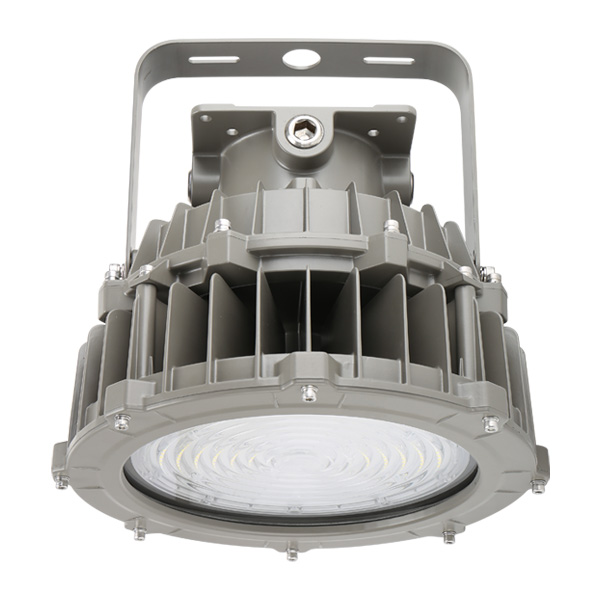

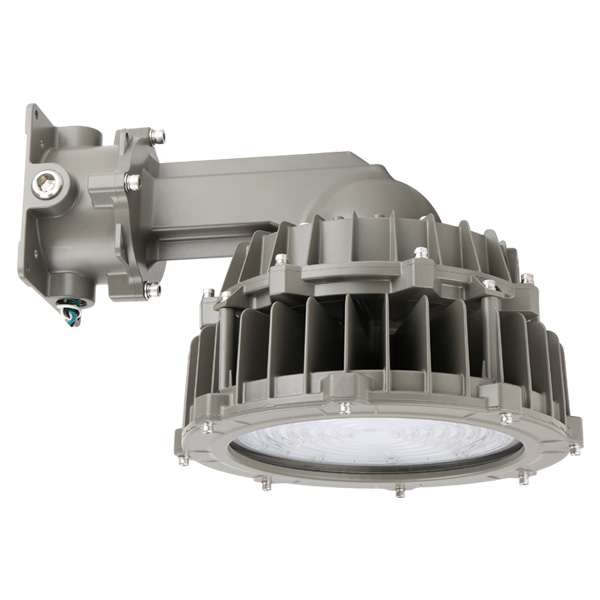

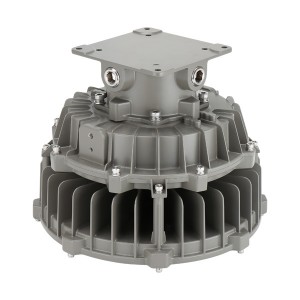

Mounting	Trunnion mount, Wall mount , Pendant mount , Round pole mount , Ceiling mount
Dimensions
60W/70W/80W/90W/100W/120W/140W/160W/180W/200W	Ø13inx10.2in
