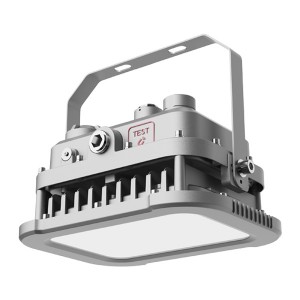

Hazardous Location Square Luminare-HS01

Hazardous Location Square Luminare-HS01

Short Description:

MESTER’s  Hazardous Location Luminatres delivers versatile solutions, efficient illumination, and outstanding stability for complex and hazardous work
scenarios. With an ingenious design and a solid internal structure, it readily accommodates diverse installation needs, fitting seamlessly into industrial plants and port docks alike.
The durable cast aluminum housing, enhanced by a long-lasting epoxy coating, paired with a high-quality tempered glass lens grants it exceptional weather resistance and a prolonged
lifespan, providing a reliable lighting option that endures.



Features&Benifits:

  • The MHS01 has a durable cast - aluminum housing, IP66 & IK10 ratings, enduring harsh conditions.
  •  It offers 4,050 - 68,000lm output, up to 170Lm/W, and uniform lighting.
  • With multiple mounts like trunnion, arm, and hook, it’s highly adaptable.
  •  Its universal voltage, 0 - 10V dimming, high PF, and low THD are great for various systems.
  •  It has a 100,000 - hour LED lifespan and 5 - year warranty for long - term use. 认证图标_防爆灯

Product Detail

Download

Product Tags

Specification
Series No.
MHS01
Voltage
100-277VAC or 277-480VAC
Dimmable 0-10V Dimming
CCT Color
Green, Red, Yellow
Power
30W,60W,80W,100W,150W,200W,300W,400W
Light Output 2700K, 4000K , 5000K
CRI >70
Waterproof level
IP66
Operating Temperature
-40°C to 65°C ( -104°F to 149°F )
Lifespan
100,000 hours
Warranty
5 year
Application
Oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location
Mounting
Trunnion mount/U-bracket mount , Arm mount , Hook mount, Wall mount with suction base(90°), Wall mount with suction base(120°), Tube hanging mount
Dimensions
30W/60W 9.84in x 6.3in x 6.53in
80W/100W 12.60in x 9.05in x 7.40in
150W/200W 14.96in x 9.05in x 7.40in
300W/400W 16.5in x 11.81in x 8.27in

  • Hazardous Location Square Luminare Specification Sheet
