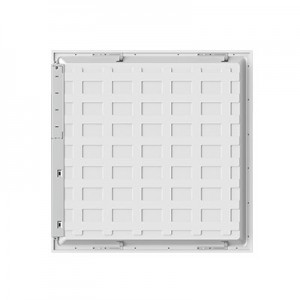

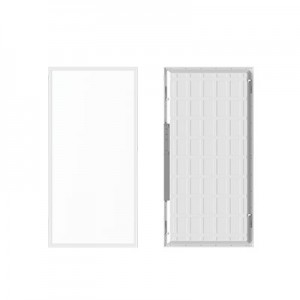

Flat Panel Light-MFP01

Flat Panel Light-MFP01

Short Description:

Mester LED Panel series is fully configurable to meet today’s complex lighting and control needs. lt provides comprehensive solutions, including sensor controls, emergency back-up, and high lumen output options. lts low-profile,
back-it design ensures uniform illumination that fits shallow plenums with ample space. This series is ideal for schools, offices, healthcare facilities, and other commercial environments.





Features & Benefits:

  • Universal 120-277VAC input voltage.
  •  Standard T bar design ensures the fxture easily locks onto the grid ceiling
  • Installation: Surface Mount (default), Recessed Mount (optional), Suspended mount (optional).
  • 0-10V dimming driver supports dimming from 10% to 100%.
  • CCT adjustable for 3500K/4000K/5000K.
  • New backlit technology provides optimal light diffusion and uniform surface brightness.产品认证图标_FP01

Product Detail

Download

Product Tags

Specification
Series No.
MFP01
Voltage
120-277VAC
Dimmable
0-10V dimming
Light Source Type
LED chips
Color Temperature
3500K/4000K/5000K
Power
40W,50W
Light Output
125lm/W,127lm/W
Beam Angle 120°
Operating Temperature
-17°C to 45°C (-1.4˚F - + 113˚F)
Lifespan
50,000 hours
Warranty
5 year
Application
Office, Commercial lighting
Mounting
Surface Mount (default), Recessed Mount (option), Suspended mount (option)
Accessories
Emergency Battery, PIR Sensor
Dimensions
1x4 47.7 in x 11.9 in x 1.41 in
2x2 23.7 in x 23.7 in x 1.41 in
2x4 47.7 in x 23.7in x 1.41 in

  • Flat Pane Light Specification Sheet
