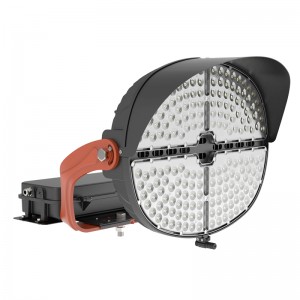

LED Sports Light – MSL03

LED Sports Light – MSL03

Short Description:

The MESTER MSL03 series is a powerful stadium light designed with Remote Power System.This Remote Power System not only makes the fixture easy to install, greatly improves the flexibility of on-site installation, but also simplifies the driver maintenance operation steps to the greatest extent, eliminating the cost to take the bucket or crane basket equipment for maintenance. Precision engineered optics provide excellent high output and high efficiency, making them ideal solutions for municipal, school and semi-professional outdoor sports lighting.





Features & Benefits:

  • Has a Remote Power System for easy installation and simplified driver maintenance.
  • Offers scalable lumen packages from 70,000 to 165,000 Lumens.
  •  Features an ultra-wide input voltage (200 – 480VAC or 120 – 277V or 347 – 480V) and 0 – 10V dimming.
  • Comes with a sealed die-casting profile with IP65 protection for outdoor use.
  • Is compatible with the Synapse™ wireless control system for smart lighting control.产品认证图标_SL03 SL04

Product Detail

Download

Product Tags

Specification
Series No.
MSL03
Voltage
120-277V/347V-480V VAC
Dimmable
0-10V dimming
Light Source Type
LED chips
Color Temperature
4000K/5000K/5700K
Power
350W, 480W, 505W, 600W, 650W, 850W, 1200W
Light Output
51000 lm, 70000 lm, 84000lm, 91000lm,  118000lm, 160000lm
UL listing
UL-US-L359489-11-41100202-9
IP Rating
IP65
Operating Temperature
-40°C to 45°C (-40°F to 131°F)
Lifespan
100,000-hour
Warranty
5 year
Application

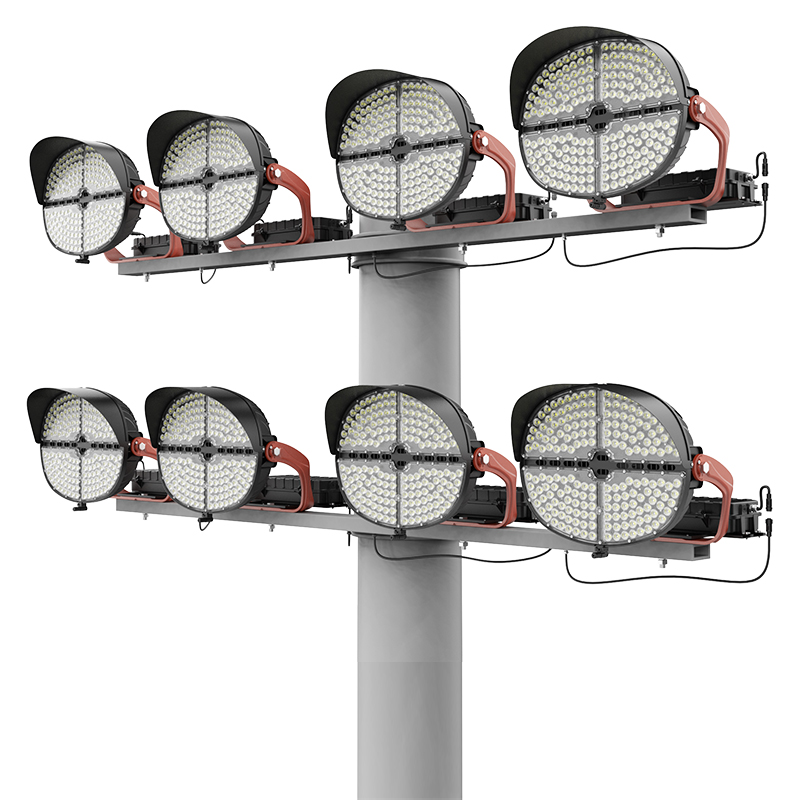

General and security lighting for large areas Port and rail centers, Airport apron, Interior or exterior sports
Mounting
Trunnion
Accessory
Yoke Adaptor (Optional), Aiming Sight
Dimensions
350W/480W/505W/600W
20.8x16.9x26.9in
650W/850W/1200W
23.8x19.7x29.8in

  • LED Sports Light Specification Sheet
  • LED Sports Light Instruction Guide
