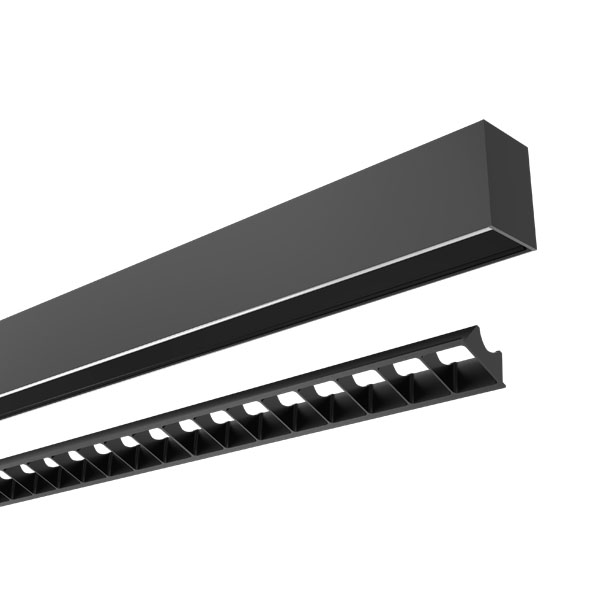

LED Linear Light – MALL04
Short Description:
Mester Architectural luminaires creating graceful lines of light that support visual continuity between interior and exterior applications.
The wide choice of optics allows you to further customize the illuminated environment.
Features & Benefits：
- Available in Pendant, Surface, Recessed mount.
- Five distribution adjustable by dip switch.
- Available in diffused and anti-glare louver reflector.
- Available in 2′, 4′,6′, 8′ lengths.
- Custom pattern with optional for Line, L, X,T, Y, V joiners.
- Selectable wattage: 1009675%6/50%.
- CCTadjustable:2700K/3000K/3500K/4000K/5000K
- Universal 120-277 VAC input voltage
| Specification | |
| Series No. |
MALL04 |
| Voltage |
120-277VAC |
| Dimmable |
0-10V dimming |
| Light Source Type |
LED chips |
| Color Temperature |
2700K/3000K/3500K/4000K/5000K |
| Power |
20W,40W,60W,80W |
| Light Output |
125lm/W,125lm/W,135lm/W,135lm/W,130lm/W |
| Operating Temperature |
20°C to 40°C (-4˚F - + 104˚F) |
| Lifespan |
50,000 hours |
| Warranty |
5 year |
| Application |
Office, Commercial lighting |
| Mounting |
Dry Wall pendant,Drop ceiling pendant,Surface mount,Wall mount,Trimless recess,Trim visible recess,Drop ceiling recess,Dry wall recess |
| Accessory |
Plug-in PIR Sensor |
| Dimensions | |
| 2FT |
23.6in. x 2.16in x 3.15in |
| 4FT |
47.2in. x 2.16in x 3.15in |
| 8FT | 94.4in. x 2.16in x 3.15in |
-
Architecture Linear Light Specification Sheet
-
