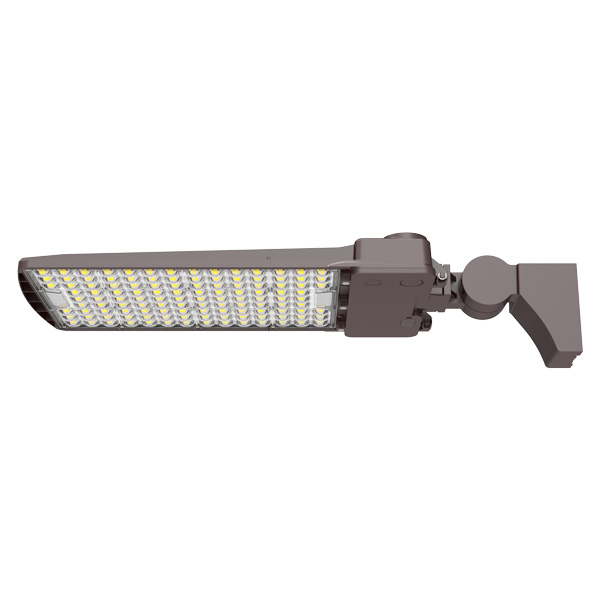

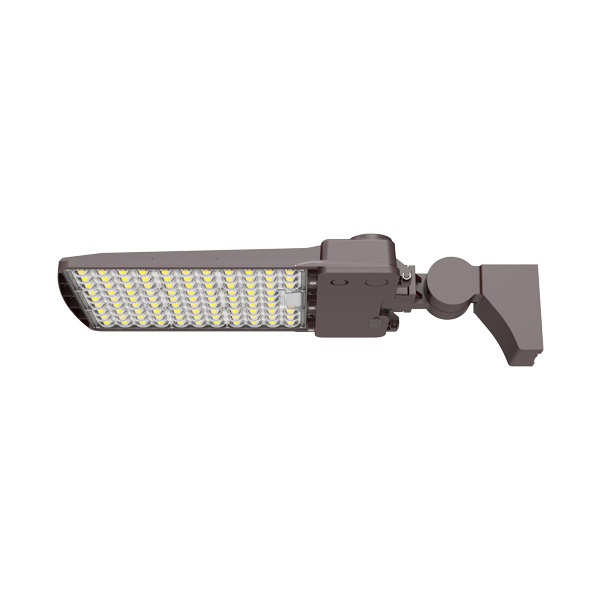

LED Area Light – MAL12

LED Area Light – MAL12

Short Description:

The MESTER Area Light family has introduced a brand new multifunctional series - the MAL11. Its highly modern design can easily blend into various
installation environments.  The concept of a slim and light housing optimizes product heat management through convective cooling. MAL11 utilizes
the latest LED technology to provide high performance, high efficiency, and long-lasting service, while also meeting the needs of customers with a
low budget.  AL11 retains the universal NEMA photocell and sensor functions, while also supporting Field-Adjustable power, CCT and optics, which
helps to reduce inventory pressure for customers.





Features & Benefits:

  • Durable one-piece die-cast aluminum housing and polycarbonate lens.
  • Color Temperature adjustable: 3000K,4000K,5000K.
  • Optics Field-adjustable for Type lll, IV,V distributions.
  • Four adjustable Wattage levels available for each model.
  • Standard 0-10v dimming driver for 10% to 100% dimming
  • 10KV(@120-277V)or 20KV@347-480V) surge protection.
  • Operating temperature is -40°C to 45°C.产品认证图标_AL11 AL12

Product Detail

Download

Product Tags

Specification
Series No.
MAL12
Voltage
120-277 VAC or 347-480 VAC
Dimmable
0-10V dimming
Light Source Type
LED chips
Color Temperature
3000K/4000K/5000K
Power
180W,  250W
Light Output
 25,740 lm, 33,275 lm
Operating Temperature
-40°C to 40°C ( -40°F to 104°F )
Lifespan
100,000 hours
Warranty
5 year
Application
Automobile dealerships, Parking lots, Downtown areas
Mounting
Round pole, Square pole, Slipfitter, Wall mount and Yoke mount
Accessory
PIR Sensor, Photocell,External Glare Shield
Dimensions
180W
(Yoke Mount)
25.560x12.459x2.362in
180W
(Slipfitter Mount)
28.423x12.459x3.344in
180W
(Pole Mount)
24.164x12.459x6.968in
 180W
(Wall Mount)
 24.283x12.459x9.614in
 180W
(Adjustable Square Mount)
 20.712x12.459x5.353in
250W
(Yoke Mount)
29.167x12.459x2.362in
250W
(Slipfitter Mount)
32.025x12.459x3.344in
250W
(Pole Mount)
27.767x12.459x6.968in
250W
(Wall Mount)
27.885x12.459x8.011in
250W
(Adjustable Square Mount)
32.065x12.459x5.393in

  • LED Area Light Specification Sheet
